There are 4 models optional, different model with different interface and appearance, please choose suitable model before purchase:
—12 in 1 Interface included —
Gigabit Ethernet Lan RJ45*1 (10/100/1000Mbps Broadband)
VGA*1
4K (3840*2160 / 30HZ) HDMI*2
USB 3.0*2 (high-speed data transmission, flash disk/mouse/keyboard and so on)
USB 2.0*2
USB C PD charging*1
TF Card Reader*1
SD Card Reader*1
3.5mm Audio Jack/Mic 0-in-1*1
—8 in 1 Interface included —
4K (3840*2160 / 30HZ) HDMI*1
Ethernet Lan RJ45*1 (10/100Mbps Broadband
USB 3.0*1
Type-C*1
TF Card Reader*1
SD Card Reader*1
USB C PD charging*1
USB C data port*1
—5 in 1 Interface included —
USB 3.0*1
USB 2.0*2
TF*1
SD*1

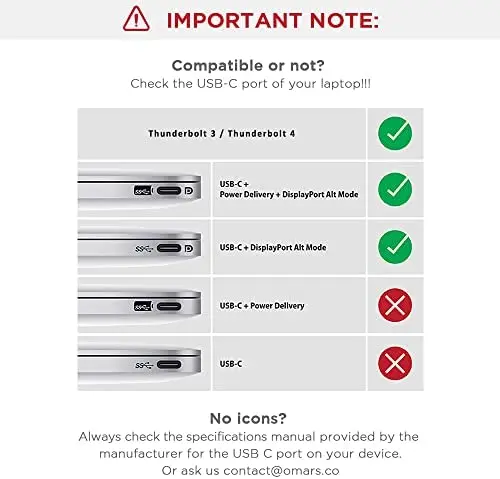

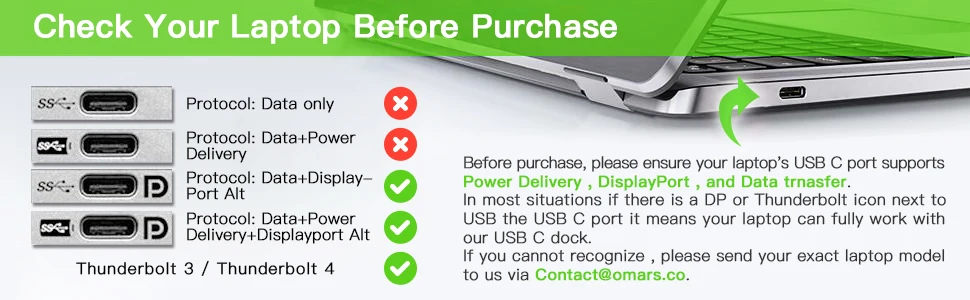

2. To use the HDMI output port, the host USB-C port from your device must support DisplayPort Alt Mode.
3. 3.5mm Audio needs to be used with HDMI or VGA.
4. Some computer systems need to manually install the network card driver to connect to the Internet
5. To use the Power Delivery function to power and charge a connected USB-C laptop, the host USB-C port from your device must support USB Power Delivery. The USB-C input charging port cannot be used for data transmission.
9. Charging Power Delivery enabled Dell USB-C laptops via the PD USB-C charging port requires using your 55W or above original power adapter.
—12 in 1 Product Feature—
【12 in 1 USB-C Docking Station】laptop docking station has perfectly combined the function of usb-c hub and docking station. Compared to the heavy docking station and other USB C hubs, it is a docking station triple monitor, lightweight, portable, powerful with multi-ports. Built-in advanced chips with low power consumption, quicker heat dissipation and higher data transfer efficiency refine a new concept of USB C dock.
【Triple Display USB C Hub】The laptop dock’s Multi-HDMI and VGA ports can mirror or expand videos to external three or dual monitors. For OS system, it is also a mac mini dock, but please note it only supports mirror mode and non-mirror mode. Non-mirror mode means that the three external monitors are the same but different from the laptop. Please Note: When VGA Port is connected, each monitor will be limited to a maximum resolution of 1920 x 1080@60Hz. (Check out the third pic)
【Ethernet & 100W USB-C Charging】The 1000mbps Gigabit RJ45 Ethernet port of thunderbolt 3 dock lets you enjoy high-speed internet. 1G movie can be downloaded in a few minutes. The PD charging port supports 100W/20V/5A that allows you to charge your Type C devices quickly. You can use this MacBook pro docking station to power your laptop with your original 87W adapter. Please Note: The Type C PD charging port is only applicable to devices with PD protocol.
【4 USB Ports and SD/TF Reader】 2 USB 3.0 ports with a 5gbps data transfer rate and 4.5W (5V/900mA) power output. And 2 USB 2.0 ports are best used for your mouse, keyboard and other low rate devices. The built-in SD and TF slot allows for easy access to files from universal SD and micro SD memory cards with a super speed of up to 5gpbs.
Troubleshooting
Q1: CAN’T charge my devices
A1: Check the host USB-C port of your device support power delivery or not.
Q2: My device is without USB C Port, will it work with my device if I use a USB C Female to USB Male Adapter?
A2: NO!!!!!!!!!!!!!!!!!!!!!!!!!!!! It WON’T work!!
Q3: Resolution Problem
A3: Multiple Display USB C Docking Station Video Resolution Configurations:
Single Monitor: 1*4K@30Hz(3840×2160) (HDMI)
Single Monitor: 1*1080P@60Hz(1920×1080) (VGA)
Dual Monitors: 2*1080P@60Hz (HDMI + HDMI)/ (HDMI + VGA)
Triple Monitors: 2*1080P@60Hz + 1*800×400@60Hz (HDMI + HDMI + VGA)
(To achieve optimal 3840 x 2160 resolution, please use it with a 4K screen display monitor)
Q4: Black Screen Problem
A4: If the HDMI monitors go black for 2–4 seconds and then recover, it is normal. It is a process of EDID (Extended Display Identification Data) communication, which may blackout screen for a few seconds. The recovery time depends on the laptop and monitor (1 minute at max).
Q5: How to Use External Monitors with Your Mac
A5: Use extended desktop mode: 1. Choose Apple menu > System Preferences, then click Displays. 2. Click the Arrangement tab. 3. Make sure that the Mirror Displays checkbox isn’t selected. 4. Arrange your displays to match the setup on your desk. To change the position of a display, drag it to the desired position. A red border appears around the display as it’s moved. 5. To set a different display as the primary display, drag the menu bar to the other display. The primary display is where your desktop icons and app windows first appear.
Mirror your displays: 1. Make sure that your external display is turned on and connected to your Mac. 2. Choose Apple menu > System Preferences, click Displays, then click the Arrangement tab. 3. Make sure that the Mirror Displays checkbox is selected.
Q6: Incompatible Devices (Not a full list, you are welcome to ask us if you don’t know your device is compatible or not)
Incompatible with Surface laptop 2
Incompatible with Macbook pro 2020(M1), MacBook Air 2020(M1), Mac mini 2020(M1), MacBook Air (13-inch, 2017, 2016, 2015, 2014, 2013 and older) MacBook Pro (13-inch, Early 2015, 2014, 2013 and older), iMac 2009-2015, MacBook Air 7.2, Apple USB SuperDrive
Incompatible with Dell : Inspiron 17 5000 series/15 5000 series/Latitude E7270/Latitude 7470/Dell Inspirion 3793/Inspiron 7000 Gaming Laptop/vostro mt 3671, Inspiron 15 3000, Inspiron 11 3000 2-in-1, Inspiron 17 3000; Dell Chromebook 5190 Dell Latitude 3390
Incompatible with Samsung : galaxy Tab 5/galaxy a50 phone, Samsung Galaxy A20 / A20E / A50 / A70 / A80 / S6 / S7 / J6 / J7 / M20 / M30; Samsung Galaxy Tab A / 10.1 / 10.5 / S3;
Incompatible with Asus : vivo book series/q547/Zenbook UX330UA-AH55/q526f USB-C 3.1 Gen 1/TUF 17.3 Full HD Gaming Laptop/ZenBook Flip 14 UX461FN-DH74T laptop/L203MA Laptop PC, ASUS Zenbook UX434X, ASUS S15 S512FA; Acer aspire a515-54; ASUS Q547FD;
Incompatible with Lenovo : ideapad flex 15IWL/5-1570/6 14IKB; T570; flex 14 2-in-1 81SS000DUS; ideapad 330/L340/ideapad 3 (81we0016us) /ideaPad 5/ideapad flex 15 iml/ideapad Flex 5.15IIL05; thinkpad 1490/Flex 15.6″ 2-in-1 Touchscreen Laptop/Ideapad 5, 2-in-1, 15″/ ideaPad S340 Laptop(81N800H2US)/ ideapad 330/ Y520/ Yoga 520; Lenovo IdeaPad 3 (17″) ThinkPad 11e Yoga Gen 6 (11″) 2-in-1, Lenovo x250; Lenovo Ideapad 320; Lenovo Ideapad 330; Lenovo ideapad flex 5 1470, Lenovo ideapad s340-15iwl 81n800h0us;
Incompatible with HP : elite 840 G4/elitebook 840 g3/820 G4/elitebook 745 G6 latptop/Elitebook Bang and Olufsen/7265NGW/EVGA SC15 /17t-by300(model 8yk40av_1)/Model 15-dy1076nr/Envy 15/prodesk 600 G2/Probook 650 g2/Probook 640 G2 G3/Spectre x360 13; 14/14-dq1033cl; 15t; elite desk mini 800 g2; 340S G7 Notebook; athlon silver laptops; Probook 640 G2;15-dw2025cl laptop/14-dq1033cl laptop; model 15-y1751ms/15-dw0037wm; Whole Pavilion Series; HP 600 G2/700 G3/ 800 Series/1030 G1/1040 G3 series Notebooks; HP Desktop PCIe Card for 6/7/8 TWR, MT, SFF
Incompatible with Acer : aspire e5-575/aspire r15/aspire r5-571t/G3-571; E5-576G; Predator Helios 300, Acer Aspire A717-72G,Acer Aspire A515-44-R1DM, Acer Aspire a515-54 model
Incompatible with MSI : Gl65/GF63 8RD with i7 8th gen/GF65 THIN 9SD-252 gaming laptop/GL75 leopard gaming laptop/GERVR 7RF Apache Pro /GE73 Raider RGB 8RF/GS73VR 7RG Stealth Pro /GF63 Tin 9SC
Others Incompayible devices: Oneplus 2/3/3T/5T/6T; All Motorola’s phone; GoPro; Amazon Fire Tablet; Surface Dock 2; LG Google Nexus 5X/6P, LG Stylist/LG G6,LG V30, LG k10/k20. Predator Helios 300 PH315-52-754M, Microsoft Surface Pro 5, Surface Pro 6, Huawei MediaPad M5 Lite
Compatible Devices(NOT a full list):
Apple Devices | MacBook(2015/2016/2017/2018); MacBook Pro(2016/2017/2018/2019/2020); iMac(2020)/iMac Pro(2017/2018/2019); MacBook Air (2018/2019/2020) Notice: doesn’t compatible with new M1-based Macs like MacBook Air M1 2020, MacBook Pro M1 2020,Mac mini M1 |
Microsoft | Microsoft surface Book 2/surface go/surface laptop 3/surface laptop 4 / Microsoft surface pro 7/surface x pro |
HP | Spectre 13/specter x369/x360 15/spectre x360 13t/spectre folio (13t-ak000cto); elitebook 840 g5 series/elitebook 840 g6/elitebook 850 g5/elitebook x2/elitebook 745 g6/elitebook 830 g6/elitebook x360 1030 G3/2018 HP elite 800 G4; envy geforce mx250/envy-17t/envy x360 (15z-ds100); GTX 4 Pro15.6/Zbook 15u G3/Zbook 17 G4/Zbook 14u g6/Zbook 16 G6/Zbook studio z5; Omen laptops; probook 440 g7/probook 450 g5/probook 450 g7/probook 650 g5; ENVY Laptop 13-aq1/ENVY x360 Convertible 15-ds1xxx |
Dell | xps13/xps 13 9365/xps 13 9300/xps15/xps 15 2018/xps 9380/5590; latitude 3500/7490/7280/7300/7370/7390/7480/7400/5400/5500/5490/5310 2-in-1/5310 2-in-1; Inspiron 14 7000 series 2-in-1(7405)/15 7000 series 2-in-1/Inspiron 7373; precision 7730/7750/7520/5550/5540 |
Asus | Ling Yao 3, Ling Yao 3PRO, Ling Yao X Series, U306/U321 Series, U4100ROG, U5100UQ Series zenbook flip ux370u/TUF Gaming A15 Laptop/Zephyrus G14/rog GX501/zenbook ux434f/zenBook 14 UX433FA |
Razer | Blade stealth Spirit Blade, Spirit Blade Sneak Edition |
ChromeBook Pixels, PixelBook Pen ……(Not a full list) | |
Lenovo | Lenovo yoga c740; Yoga5 Pro, Lenovo Xiaoxin Air 12-inch, Mlix 720, Thinpad-X1, ThinkPad T480, Thinpad-X390, Yogo720/730, C930; Lenovo Thinkpad T490s; X280; Lenovo T570; Lenovo T14; |
MI | Air12.5/13.3 inches, Pro15.6 inches, millet game book |
Huawei | MateBook X Pro 13.9/MateBook 13/MateBook E/MateBook X/Macbook Mate10/Mate10 pro/Mate20/Mate20pro/Mate30/Mate30Pro/P20/P20 pro/P30 pro |
Acer | aspire5 2019/d17w3 aspire c24-865/Swift 1 laptop/swift 7 sf714-52t-75r6 laptop |
Phones Device | galaxy S10+/S10/S9+/S9/S8+/S8 plus, note 10/ 9/ 8; galaxy tab s4/S5e/galaxy s20 ultra/galaxy chromebook/galaxy book flex alpha 2-in-1 13.3″ QLED Touch-Screen Laptop/T5 hard drive/new S7 tablet |
Phones Device | Huawei Mate10/Mate10pro/Mate20/Mate20 X/Mate20 Pro/Mate30/Mate30 Pro/Mate30 RS/P20/P20 Pro/P30/P30 Pro/Honor Note10/Honor V20/Honor Note10;Samsung S8/S8+/S9/S9+/S10/S10+/Note8/Note9/Samsung tablet S4 |
Others | Alienware : latest Series/alienware 17 r5; MSI : GT76 Titan/MSI B450M Mortar motherboard; Razer Blade 2017 (gtx 1060); LG Gram 17 laptop, Philips PHL 328E9Q.; Pixel book go 2019/2020; |
Warm Tips | Please check the compatible list before purchase. If your laptop is not in the list, please let us know, we are happy to help you check if the adapter is suitable for your device. |
Reliable Data Syncing USB Port Design
Two USB3.0 ports support transmission speed rates of up to 5 Gbps, connect to your smartphone, tablet and hard drive for effortless data transfer.
Two USB2.0 ports better for 2.4 GHz wireless devices, such as wireless keyboards/mouse adapters etc.
Ethernet Port
Instant access to the Internet with the Ethernet port, anywhere and in just a flash.
Offering full 10/100/1000 Mbps superfast gigabit Ethernet performance over the RJ45 Ethernet port. Faster and more reliable than most wireless connections. Perfect standby for laptops without Ethernet sockets when wireless network fails.
Compact Shape with High Flexibility
Extremely compact and slim, you can put it anywhere you want to work, even if space is limited. Place the hub in your bag for on-the-go presentations, data gathering, design projects and more. An ideal device for daily carrying, commuting, and traveling.
